Description
The FRIGO-200 truck refrigeration unit is vehicle engine driven, front mounted, and split system.
The machine key components is using high quality components, the use of green refrigerant R134a, has chilled functions, it is small size, cooling fast, precise temperature control, reliable performance.
The refrigeration system is driven by the vehicle engine through a belt of the compressor, and a refrigeration cycle through certain, to achieve rapid temperature decrease in the cabinet, so as to achieve refrigeration, freezing effect.

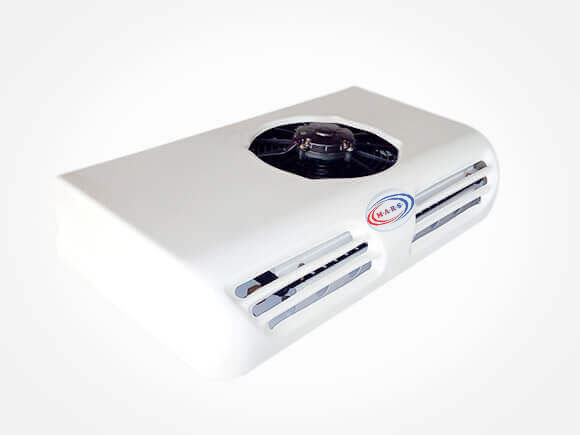

Mounted condenser

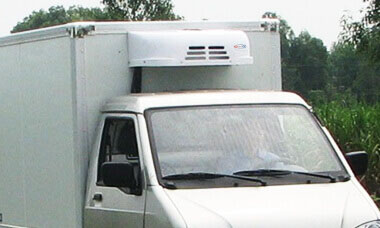

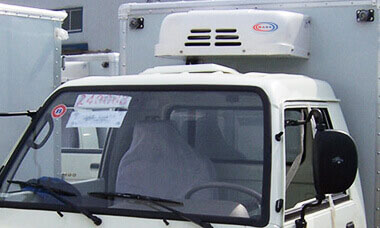

Front Mounted condenser and slim evaporator design
Refrigerating capability
Strong refrigerating ability, fast cooling process

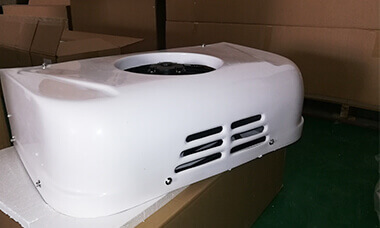

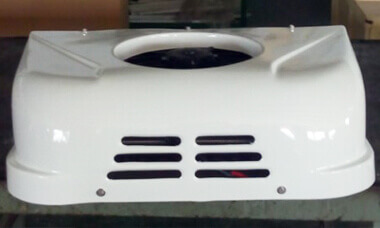

Elegant appearance
High-strength glass fiber reinforced plastics covers, elegant appearance
Compact structure
Compact structure, small size, light weight and fuel savings
Easy to Install
Easy to Install, simple maintenance and low maintenance cost

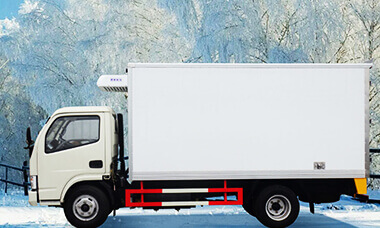

Installed for

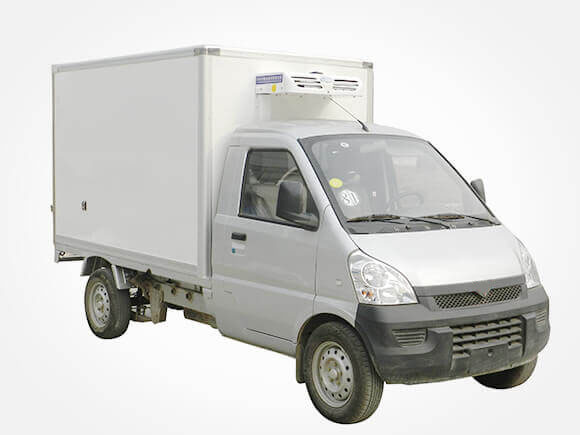

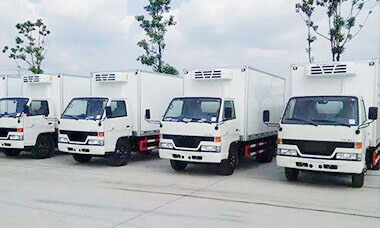

All kinds of small refrigerated Vans
Parameter
Model | FRIGO-200 | ||
Temperature rating in container | -10℃～+25℃ | ||
Cooling capacity | -10℃ | 1630W | |
Driven method | Split and vehicle engine driven unit | ||
Voltage | DC12V / DC24V | ||
Suitable refrigerated cargo box (m3) | 2~ 8m³ | ||
Controller | Electronic digital controller | ||

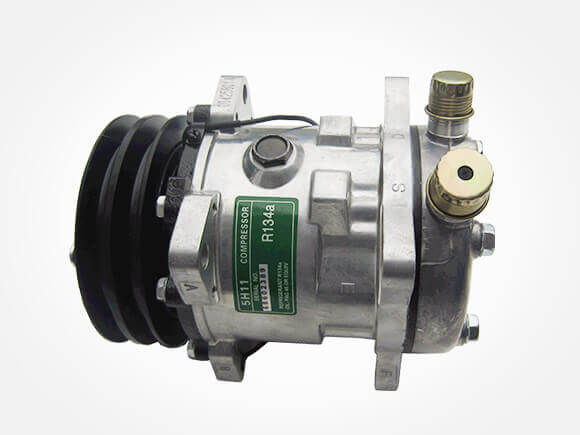

Compressor | 96cc/r; 108cc/r, or 138cc/r | ||
Refrigerant | R134a, 0.8kg | ||
Heating function | Optional | ||
Defrosting function | R404A Hot gas defrost (Auto./ Man.) | ||
Dimensions (mm) | Evaporator | 610×530×160 | |
Condenser | 715×393×165 | ||
Applicable refrigerated body | 2.4 ~ 2.6m | ||
Purchase guide
When selecting a transport refrigeration unit, be sure to select the right transport refrigeration unit based on the cooling space and cargos.
Transport refrigeration unit must match with suitable refrigerated volume. Also, The loaded cargo should match the suitable refrigeration unit，such as: vegetables, cold meat, medicines, electronic products, etc.
And inform the producer, truck body conditions, refrigerated truck models, truck engine type and the required temperature.
Based on the above information, we will recommend the relevant refrigeration equipment.
Our sales person with sufficient experience will recommend the suitable truck refrigeration unit.
