Description
The SNOWBALL-500C truck refrigeration unit is vehicle engine driven, front mounted, and mono block system.
The machine key components is using high quality components, the use of green refrigerant R404a, has frozen functions, it is small size, cooling fast, precise temperature control, reliable performance.
The refrigeration system is driven by the vehicle engine through a belt of the compressor, and a refrigeration cycle through certain, to achieve rapid temperature decrease in the cabinet, so as to achieve refrigeration, freezing effect.

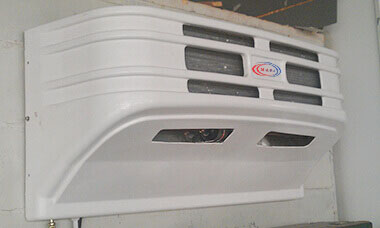

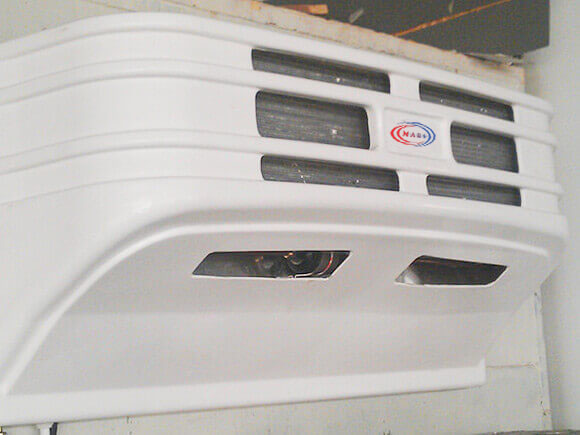

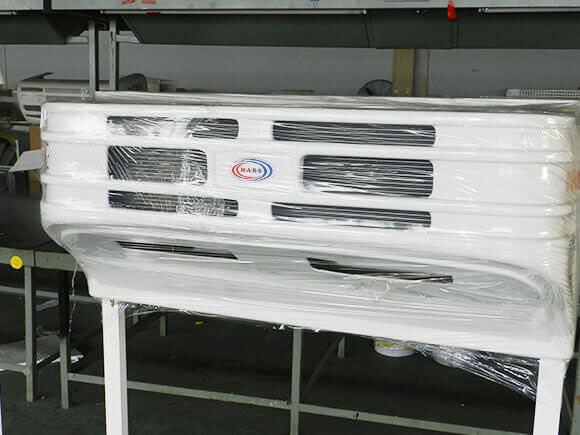

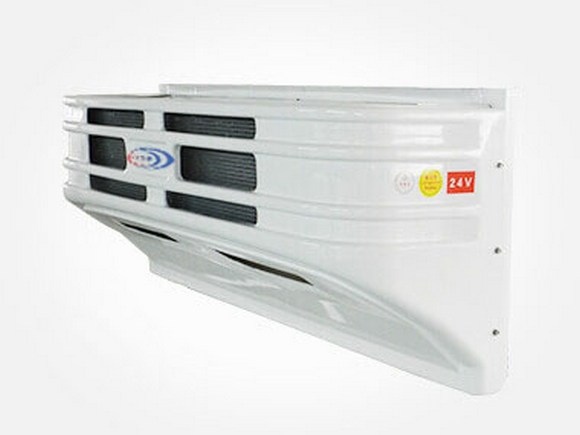

Front Mounted condenser

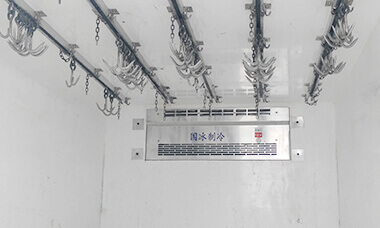

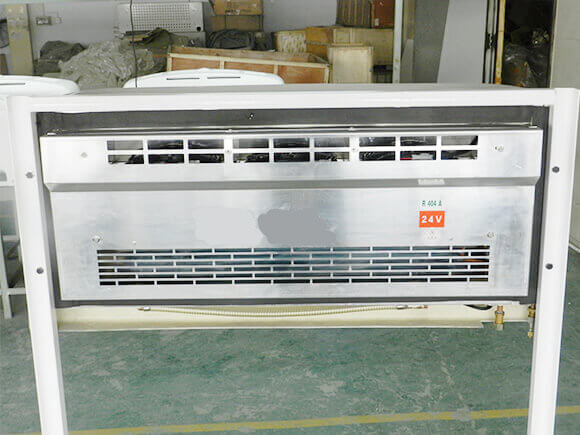

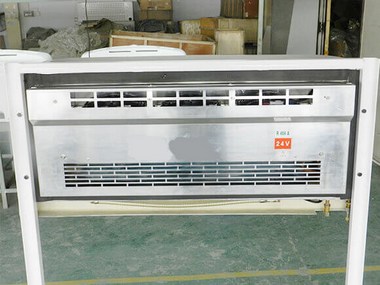

Front Mounted condenser and slim evaporator design
Refrigerated ability
Strong refrigerated ability, fast cooling process
Elegant appearance
High-strength glass fiber reinforced plastics covers, elegant appearance
Compact structure
Compact structure, small size, light weight and fuel savings
Easy to Install
Easy to Install, simple maintenance and low maintenance cost
Trial model

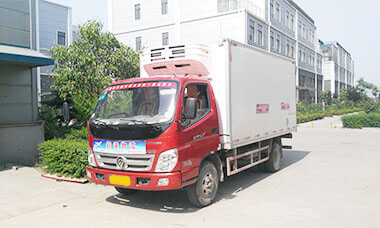

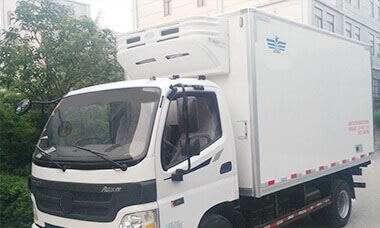

Apply to all kinds of small refrigerated trucks

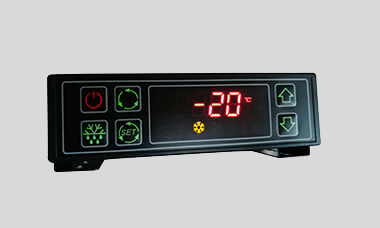

Full digital control
Full digital control, easy to operate
Parameter
Model | SNOWBALL-500C | ||
Temperature rating in container | -18℃～+25℃ | ||
Cooling capacity | -18℃ | 2200W | |
Driven method | Split and vehicle engine driven unit, and build-in standby power system | ||
Voltage | DC12V / DC24V | ||
Suitable refrigerated cargo box (m3) | 12 ~ 18m³ | ||
Controller | Electronic digital controller | ||

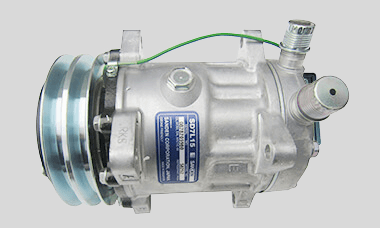

Engine driven Compressor | 155cc/r | ||
Standby Power System Compressor | 155cc/r | ||
Standby Power System Voltage | AC220V/AC380V | ||
Refrigerant | R404a, 2.2 ~ 2.6kg | ||
Heating function | Optional | ||
Defrosting function | Hot gas defrost (Auto./ Man.) | ||
Dimensions (mm) | Evaporator | 1255×585×190 | |
Condenser | 1348×505×502 | ||
Applicable refrigerated truck body | 4.2 ~ 5.6m | ||
Purchase guide
When selecting a transport refrigeration unit, be sure to select the right transport refrigeration unit based on the cooling space and cargos.
Transport refrigeration unit must match with suitable refrigerated volume. Also, The loaded cargo should match the suitable refrigeration unit，such as: vegetables, frozen meat, medicines, electronic products, etc.
Inform the Body Builder of truck body conditions, refrigerated truck models, truck engine type and the required temperature.
Based on the above information, we will recommend the best refrigeration equipment.
Our sales team with great experience will recommend the suitable truck refrigeration unit.
