Description

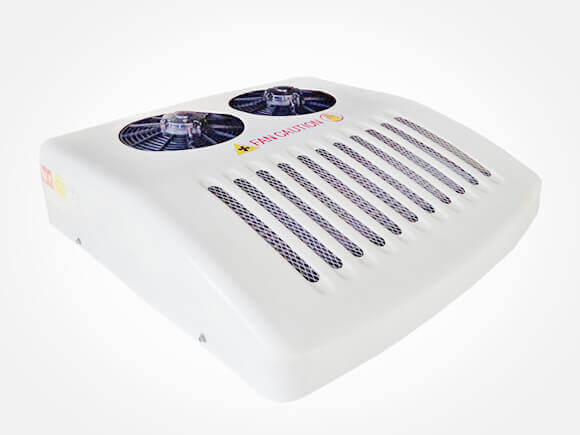

The RTR-300 van refrigeration unit is vehicle engine driven; rooftop mounted, and split system.
High quality components and use of green refrigerants R134a/R404a, give you chilled or frozen functions. A compact rooftop unit has precise temperature control, reliable performance.
The refrigeration system is driven by the vehicle engine through a belt of the compressor, and a refrigeration cycle through certain, to achieve rapid temperature decrease in the PUF Insulated Body, so as to achieve refrigeration, freezing effect.

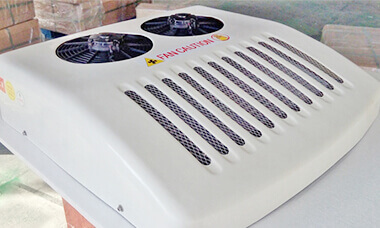

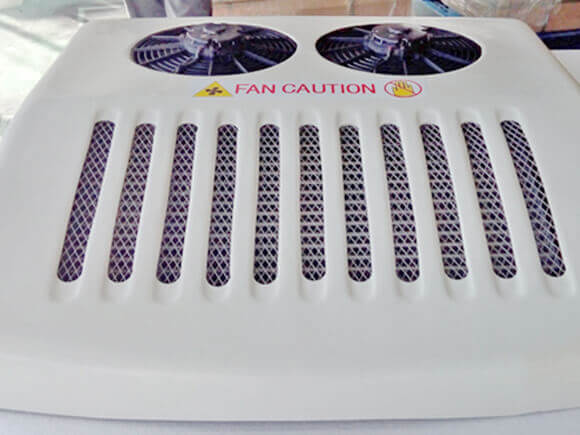

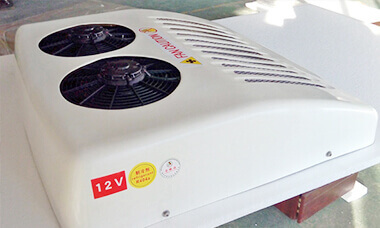

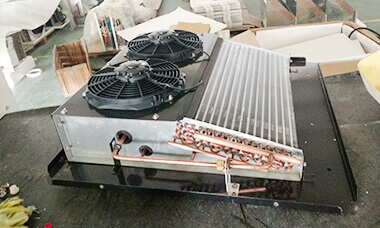

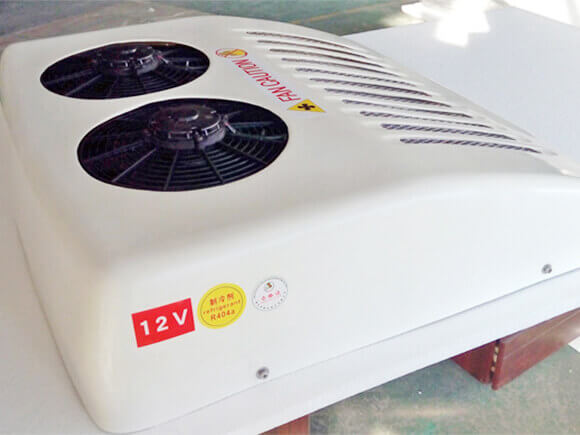

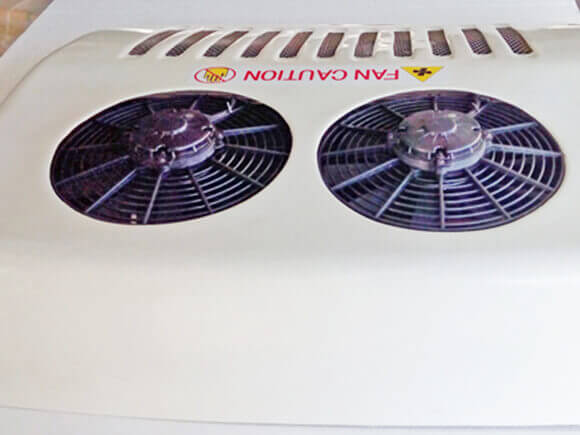

Rooftop mounted condenser

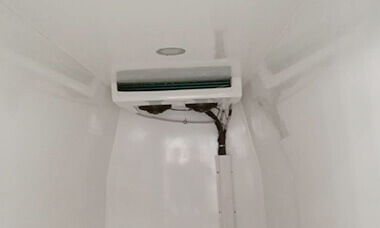

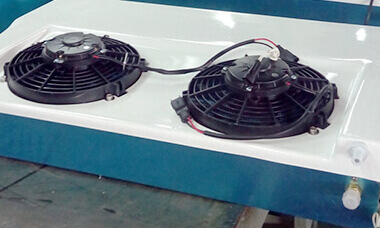

Rooftop mounted condenser and slim evaporator design
Refrigeration Capability
Strong refrigeration ability, fast cooling process
Elegant appearance
High-strength glass fiber reinforced plastics covers, elegant appearance
Compact structure
Compact structure, small size, light weight and fuel savings
Easy to Install
Easy to Install, simple maintenance and low maintenance cost

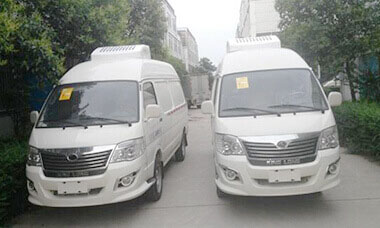

Installed
All kinds of Panel Refrigerated Vans
Full digital control
Full digital control, easy to operate
Parameter
Model | RTR-300 | ||
Temperature rating in container | -20℃～+25℃ | ||
Cooling capacity | -5℃ | 1256W | |
-20℃ | 1620W | ||
Driven method | Rooftop mounted & Split and vehicle engine driven unit | ||
Voltage | DC12V / DC24V | ||
Suitable refrigerated cargo box volume | 4 ~ 8.5m³ | ||
Controller | Electronic digital controller | ||
Compressor | 138cc/r | ||
Refrigerant | R134a/R404a, 1.2kg | ||
Heating function | Optional | ||
Defrosting function | R404A only (Hot gas defrost (Auto./ Man.) | ||
Dimensions (mm) | Evaporator | 857×570×175 | |
Condenser | 920×920×250 | ||
Suitable vehicle | Refrigerated cargo vans | ||
Purchase Guide
When selecting a transport refrigeration unit, be sure to select the right transport refrigeration unit based on the cooling space and cargos.
Transport refrigeration unit must match with suitable refrigerated volume. Also, The loaded cargo should match the suitable refrigeration unit，such as: vegetables, frozen meat, medicines, electronic products, etc.
On zeroing on truck body conditions, refrigerated truck models, truck engine type and the required temperature.
we will recommend the relevant transport refrigeration equipment for your specific requirement.
Our sales team with sufficient expertise will recommend the suitable transport refrigeration unit for you.
