Description

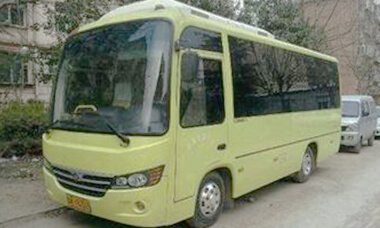

VC-16 Minibus Air Conditioner is exclusively designed for 8～9.5m long bus for models of Swaraj Mazda, Eicher , Mahindra , Tata and Powered by the vehicless own engine . Widely used for intracity buses , school Buses , Ambulances etc...
High cooling capacity
High Cooling Capacity & Reliable Performance Suitable for Most Places in the World
Apply all kinds of minibus
Stream Line Design to Apply All Kinds of minibus
High quality
Cheap Price with High Quality
Certification
ISO 9001, CE & TS16949 Certification
Parameter
Model | VC-16 | |
Cooling capacity | 16KW | |
Voltage | DC12V/24V | |
Condenser | Type | Copper pipe & Aluminum Foil fin |
Fan Qty | 3 | |
Air flow Volume | 5700m³/h | |
Evaporator | Type | Copper pipe & Aluminum Foil fin |
Blower Qty | 4 | |
Air flow Volume | 3400m³/h | |
Evaporator blower | Double axle and centrifugal flow | |
Condenser fan | Axial flow | |

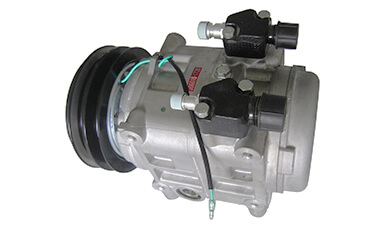

Compressor | 313cc/r | |
Refrigerant | R134a | |
Mounting position & driven mode | Rooftop mounted, vehicle engine driven | |
Dimensions (mm) | Evaporator | 1557×1700×190 |
Condenser | 1698×1700×190 | |
Applicable vehicle type | 8.5~9m Bus | |
Purchase Guide
Model: VC-16 Minibus Air Conditioner is mainly design for Mini Buses with a wider body , i.e. Swaraj Mazda, Eicher , Mahindra , Tata and Powered by the vehicles's own engine . Widely used for intracity buses , school Buses , Ambulances etc...High Air Throw takes the cooling effect to every corner of the Bus.
