Description

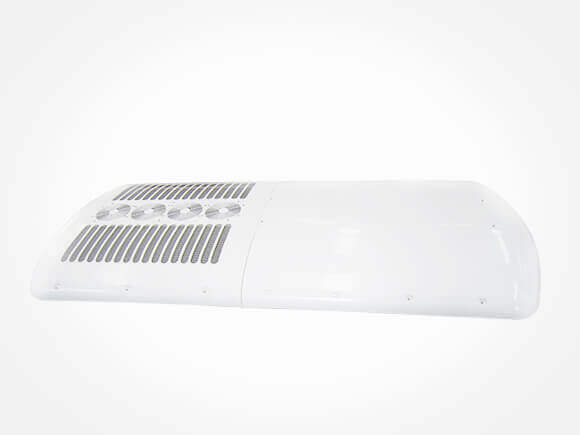

VC-32 Bus Air Conditioner is exclusively designed for 9～11m long bus for Mid East and Mid America etc, Extremely Hot Place, and Powered by the engine of the vehicle. Widely used in South America, Europe, Australia and Asia.
High cooling capacity
High Cooling Capacity & Reliable Performance Suitable for Most Places in the World
Apply all kinds of minibus
Stream Line Design to Apply All Kinds of minibus
High quality
Cheap Price with High Quality
Certification
ISO 9001, CE & TS16949 Certification
Parameter
Model | VC-32 | |
Cooling capacity | 32KW | |
Voltage | DC12V/24V | |
Condenser | Type | Copper pipe & Aluminum Foil fin |
Fan Qty | 4 | |
Air flow Volume | 7600m³/h | |
Evaporator | Type | Copper pipe & Aluminum Foil fin |
Blower Qty | 6 | |
Air flow Volume | 5000m³/h | |
Evaporator blower | Double axle and centrifugal flow | |
Condenser fan | Axial flow | |
Compressor | BITZER 4NFCY, 655cc/r | |
Refrigerant | R134a | |
Mounting position & driven mode | Rooftop mounted, vehicle engine driven | |
Dimensions (mm) | Evaporator | 2171×1862×246 |
Condenser | 1989×1862×246 | |
Applicable vehicle type | 10~12m City Bus/Coach | |
Purchase Guide
Model: VC-32 is mainly design for high passenger comfort and cooling.
The unit has 5 Air Changes and keeps up the Oxygen Level.
Cleaning regularly enhances the performance.
